Plastic Snowflake Ring for Scrubbing and Stripping Tower

Plastic snowflake ring is a high-efficiency tower packing. It has a low specific gravity, high flooding point, large porosity, high mass transfer unit height. Besides, this random packing has lower pressure drop, which reduces the back-pressure phenomenon and minimizes the energy consumption of the stripping process. Plastic snowflake ring is very economical. It can be applied in the chlorine and bromine production, air separation and water cooling process.

This tower packing is characterized by good heat resistance, excellent chemical corrosion resistance and high mass transfer efficiency. Plastic snowflake ring is suitable for seawater desulfurization, HCL (hydrogen chloride) absorption and gas-liquid separation. It is widely used in various acid storage tanks and demineralized water tanks of petroleum industry, chemical industry, metallurgy industry and environmental protection industry.

A plastic snowflake ring on a light blue background.

PSR-01: Due to its good heat and corrosion resistance, plastic snowflake ring is very durable.

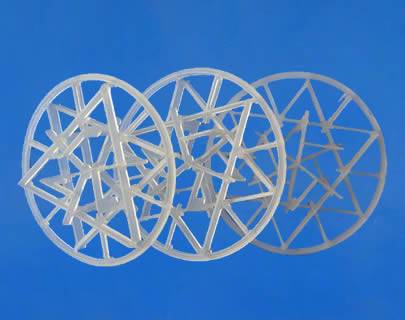

There are three plastic snowflake rings.

PSR-02: Plastic snowflake ring is suitable for seawater desulfurization and gas-liquid separation.

Specification

  • Material: PE (polyethylene), PP (polypropylene), RPP (reinforced polypropylene), PVC (polyvinyl chloride), CPVC (chlorinated polyvinyl chloride) and PVDF (polyvinylidene fluoride).
  • Size: 90 mm.
  • Surface area: 138 m2/m3.
  • Voidage: 97%.
  • Bulk number: 5000 n/m3.
  • Bulk density: 45 kg/m3.
  • Dry packing factor: 142 m-1.
  • Package: plastic bags, cartons.

Features:

  • Large porosity.
  • High capacity.
  • Low pressure drop.
  • High flooding point.
  • Uniform gas-liquid distribution.
  • Good corrosion resistance.

Applications:

  • Applied in gas and liquid separators.
  • Applied in distillation columns, washing towers, cooling towers and stripping towers.
  • Used in seawater desulfurization, HCL (hydrogen chloride) absorption and gas-liquid separation.
  • Used in chlorine and bromine production factory and air separation plants.
